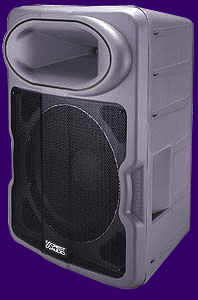

15"
+ QTG Horn Sound
Reinforcement Speaker
Features
• trapezoidal 2-way enclosure
• 15" cast frame woofer with 4" voice coil, water-resistant treated cone and dust cap for superior environmental stability
• 2" titanium diaphragm compression driver coupled to a 1" Quadratic Throat Geometry Horn moulded to the cabinet
• dispersion pattern: 90 degrees [H] x 45 degrees [V]
• power handling: 1,000 Watts programme; 2,000 Watts peak
• sensitivity: 100 dB SPL
• frequency response: 64Hz - 18kHz [+/-3 dB]
• internal passive crossover featuring a sophisticated, non-intrusive tweeter protection circuit and an advanced topology crossover with high performance components to provide high power handling and reliability (in addition, the crossover provides driver roll-off and protection, as well as EQ for the woofer and horn)
• 2 x 4-pin Neutrik jacks connected in parallel for signal input and daisy chaining capability
• stand mount and top & bottom flying point inserts
• dimensions: front--28.6" H x 21.3" W x 17.2"D
• ex-stock available in dark grey [off-white by special indent]
