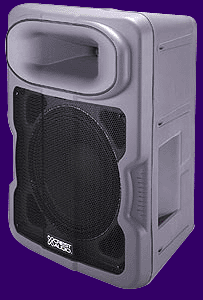

12"
+ CD Horn Sound
Reinforcement Speaker
Features
• trapezoidal 2-way enclosure
• 12" cast frame woofer with 4" voice coil, water resistant treated cone and a dust cap for superior environmental stability
• 2" titanium diaphragm compression driver coupled to a 1" Quadratic Throat Horn that is molded to the cabinet
• dispersion pattern: 90 degrees H x 45 degrees V
• power handling: 1000 Watts program; 2000 Watts peak
• sensitivity: 99 dB SPL
• frequency response: 76Hz - 18kHz +/-3dB
• internal passive crossover featuring a sophisticated, non-intrusive tweeter protection circuit and an advanced topology crossover with high performance components to provide high power handling and reliability (in addition, the crossover provides driver roll-off and protection, as well as EQ for the woofer and horn)
• 2 4-pin Neutrik jacks connected in parallel for signal input and daisy chaining capability
• 1 4-pin Neutrik switching jack for biamping
• 2 high-current 1/4" phone jacks
• stand mount and top & bottom flying point inserts
• dimensions: front--23.7" H x 17.8" W x 14.3"D
• weight: 45 lbs.
• available in dark grey or off-white
